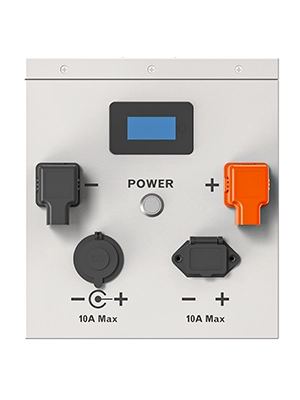

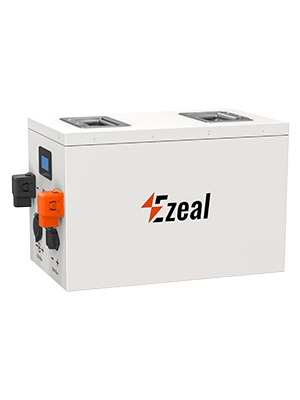

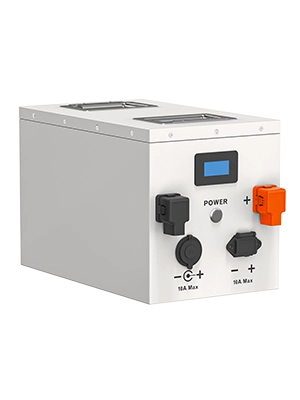

EZEAL 12.8V 100Ah Lithium Iron Phosphate Battery


Products used for EZEAL 12.8V 100Ah Lithium Iron Phosphate Battery are solar power, RVs, electric wheelchairs, LEVs, monitoring, telecom tower, wind power, home solar, solar street lights, E-bikes, motor homes, off-grid living, golf carts, and much more.

Datasheet Download


12.8V 100Ah Lithium Iron Phosphate Battery

  • 8V 100Ah lithium iron phosphate battery
  • Nominal Voltage: 8V
  • Nominal Capacity: 100Ah
  • Dimensions: L320mm*W190mm*H210mm
  • Weight: 26 Lbs.
  • Kilowatt-hour(s):1.34kWh
  • Lifespan: 15 Years
  • Cells lifecycles: 6000
  • Depth of Discharge: 80%+
  • Warranty: 5 Years


General Specifications

  • Product Composition: lithium iron phosphate battery
  • Rated capacity: 104Ah
  • Internal Resistance: ≤150mΩ
  • Nominal voltage: 12.8V
  • Standard Charging Current: 0.2C
  • Max charging current: ≤100A
  • Charging Voltage Limit: 14.6V
  • Discharge Cut-off Voltage: 10V
  • Charging temperature: 0°C ~45°C
  • Discharge temperature: -20°C ~60°C

Protection Features

  • Temperature FET Discharge Protection (Internal Solidification)
  • Low Temperature Charging Protection (External) (With Heating)
  • High Temperature Charging Protection (External)
  • Short Circuit Protection
  • Discharge Overcurrent Protection
  • Overcurrent Protection During Charging
  • Single-cell Over-discharge Protection
  • Single-cell Overvoltage Protection
  • Balancing Function
  • Automatic fire extinguishing function
