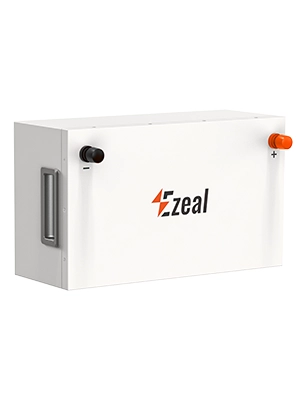

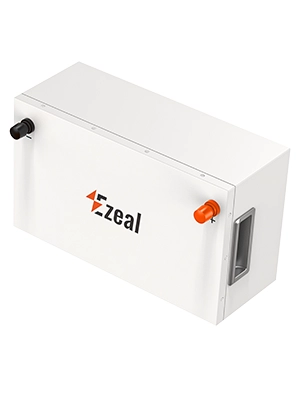

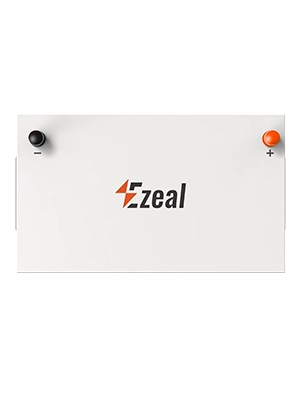

EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery


Products used for EZEAL 12.8V 200Ah Lithium Iron Phosphate Battery are solar power, RVs, electric wheelchairs, LEVs, monitoring, telecom tower, wind power, home solar, solar street lights, E-bikes, motor homes, off-grid living, golf carts, and much more.

Datasheet Download


12V 200Ah Lithium Battery

12.8V 200Ah lithium iron phosphate battery

  • Nominal Voltage: 8V
  • Nominal Capacity: 200Ah
  • Dimensions: L149mm*W89mm*H59mm
  • Weight: 43 Lbs.
  • Kilowatt-hour(s): 52kWh
  • Lifespan: 15 Years
  • Cells lifecycles: 6000
  • Depth of Discharge: 80%+
  • Warranty: 5 Years

General Specifications


  • Product Composition: lithium iron phosphate battery
  • Rated capacity: 200Ah
  • Internal Resistance: ≤150mΩ
  • Nominal voltage: 12.8V
  • Standard Charging Current: 0.2C
  • Maximum Charging Current: ≤200A
  • Charging Voltage Limit: 14.6V
  • Discharge Cut-off Voltage: 10V
  • Charging temperature: 0°C ~45°C
  • Discharge temperature: -20°C ~60°C


  • Single-cell Overcharge Protection
  • Total Voltage Overcharge Protection
  • Single-cell Over-discharge Protection
  • Overcurrent Protection During Charging
  • Discharge Overcurrent Protection
  • Short Circuit Protection
  • Temperature Protection
  • Balancing Function
  • Automatic fire extinguishing function
