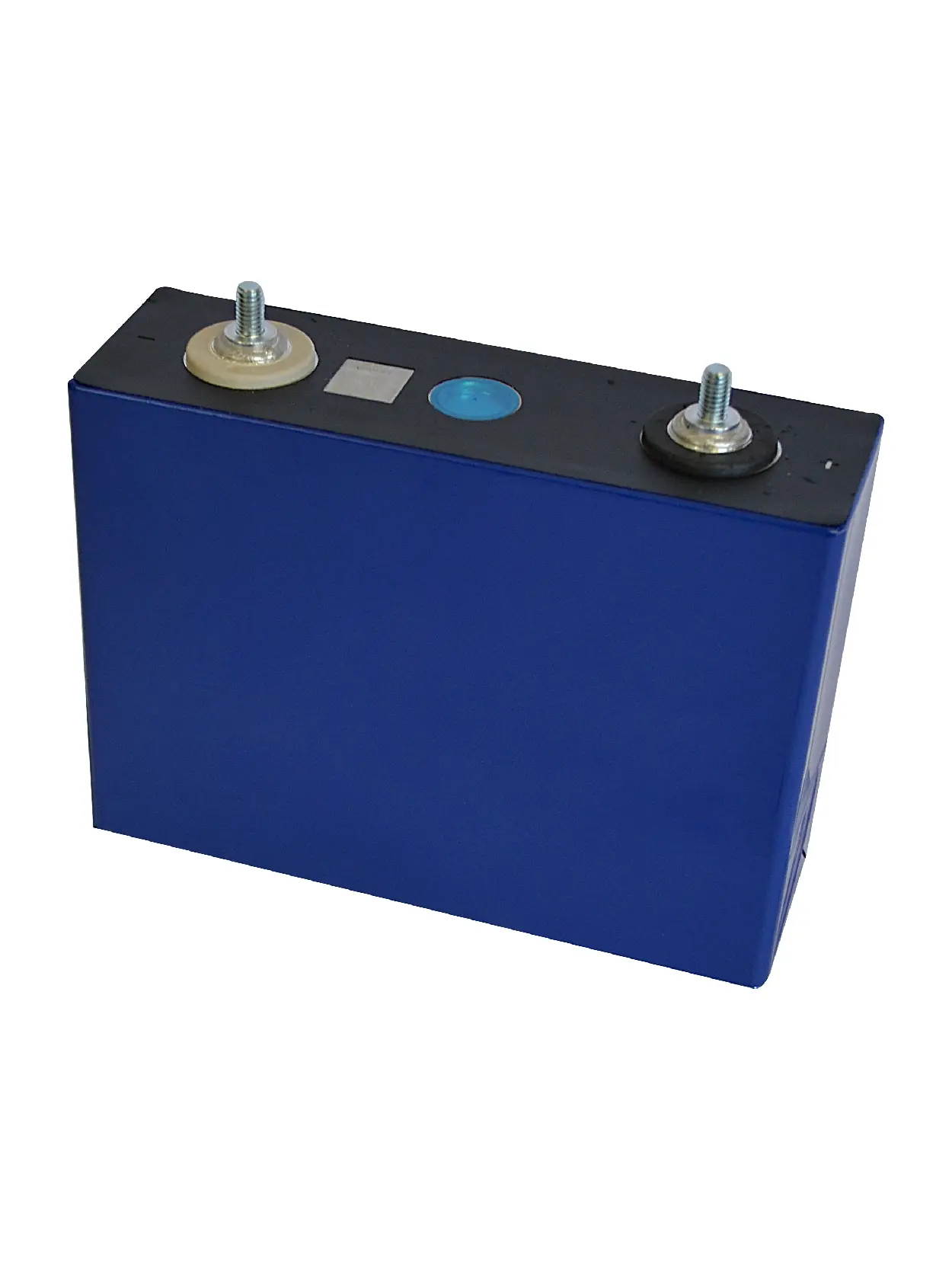

Grade A EVE 100Ah LiFePO4 Prismatic Battery Cells


LiFePO4 Battery 3.2V EVE 100Ah Prismatic Cells Deep Cycle for Battery Pack Building

3.2V 100Ah lithium iron phosphate battery cell

Nominal Voltage: 3.2V

Nominal Capacity:100Ah

Datasheet: RD-LF100LA-S01-LF100Ah-Datasheet



Products used for EVE 3.2V 100Ah LiFePo4 prismatic battery are solar power, RVs, electric wheel chair, LEV, monitoring, telecom tower, wind power, home solar, solar street lights, E-bikes, motor homes, off grid living, golf carts and much more.

Shipped from Houston, TX

General Specification

  • Rated capacity:102Ah
  • ACR: ≤0.5Mω
  • Rated Energy: 326.4Wh
  • Nominal voltage:3.2V
  • Charging Cut-Off Voltage: 3.65V

Discharging Cut-Off Voltage:

2.5 (0°C<T≤65°C)

2.0 (-20°C<T≤0°C)

  • Cycle life (80%DOD):5000 cycles
  • Charging Temperature: 0°C ~65°C
  • Discharging Temperature:-20°C ~65°C
  • Max Charging Current: 1C

Dimensions: 4.5*6.3*1.97 inches

Weight: 4.5 Lbs.


  • Engine starting battery.
  • Solar and wind power system
  • RVs
  • Off-grid living.
  • Electric bicycle/motorcycle/scooter
  • Golf trolley/carts
  • power tools
  • Electric Vehicle
  • Energy storage
  • Communications


In store pick up is available

All orders will be shipped from Houston TX the next day after your order is placed.

Prismatic Battery Product Warranty:5 Years.
