lithicore charger

PULSE2 BAY CHARGER

an advanced, modern, high-tech smart charger capable of charging Lithium Ion batteries, NiMH batteries and Nickel-Cadmium batteries.

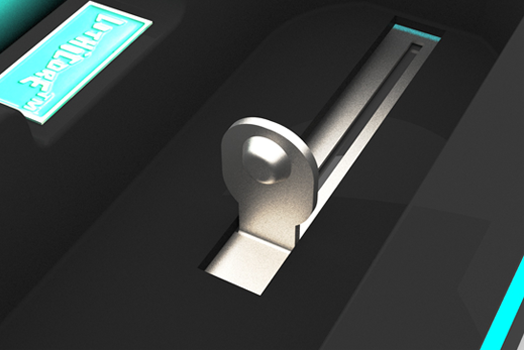

The sliding springs design makes the LITHICORE PULSE efficient for charging cylindrical shaped batteries of various sizes with voltages between 2.9V and 4.2V.

PULSE2 BAY CHARGER

While charging AA/AAA NiMH batteries and Nickel-Cadmium batteries,
the LITHICORE PULSE can charge between 1.0V and 1.5V and recover
any Lithium Ion battery that is discharged below 3.0V.Designed with a
smart recognition chip, the LITHICORE PULSE can identify the type of
battery that has been inserted and determine if the battery is Lithium
Ion, NiMH or Nickel-Cadmium.

PULSE2 BAY CHARGER

While charging AA/AAA NiMH batteries and Nickel-Cadmium batteries,
the LITHICORE PULSE can charge between 1.0V and 1.5V and recover
any Lithium Ion battery that is discharged below 3.0V.Designed with a
smart recognition chip, the LITHICORE PULSE can identify the type of
battery that has been inserted and determine if the battery is Lithium
Ion, NiMH or Nickel-Cadmium.

PULSE2 BAY CHARGER

Pulse Charger is compatible
with the Following batteries

10440,14500,14650,16340,16650,17650,17670
18350,18490,18500,18650,22650
20700,21700,26500,26650
Cylinder AA/AAA NiMH batteries and Nickel-Cadmium batteries

Specifications:

Input: DC 5V 2100mAh Lithium Ion battery charging, discharging function

  1. Charging stop voltage: 4.20±0.05V
  2. Auto recharge threshold voltage< 4.10
  3. Low battery voltage< 3.4V
  4. Low battery protection voltage < 3.2V
  5. Lithium ion battery activation Voltage <3.0V
  6. Stable charging current: 2100mAh±10% while 1 slot is charging; 1000mAh±10% while both are charging.
  7. Charging activation current: 120mAh ±10%;
  8. Charging cut off current: 120mAh ±10%;

NiMH batteries and Nickel-Cadmium batteries charging function

  1. Constant-current charging: 1000mAh±10%
  2. Charging Voltage: <1.6V ±0.05V
  3. Voltage change: -20mV
  4. The longest charging time: Can be charged 2 more hours after when NiMH batteries reached 1.4V.
  5. Auto recharge threshold voltage<1.2V ±0.1V
